Gears

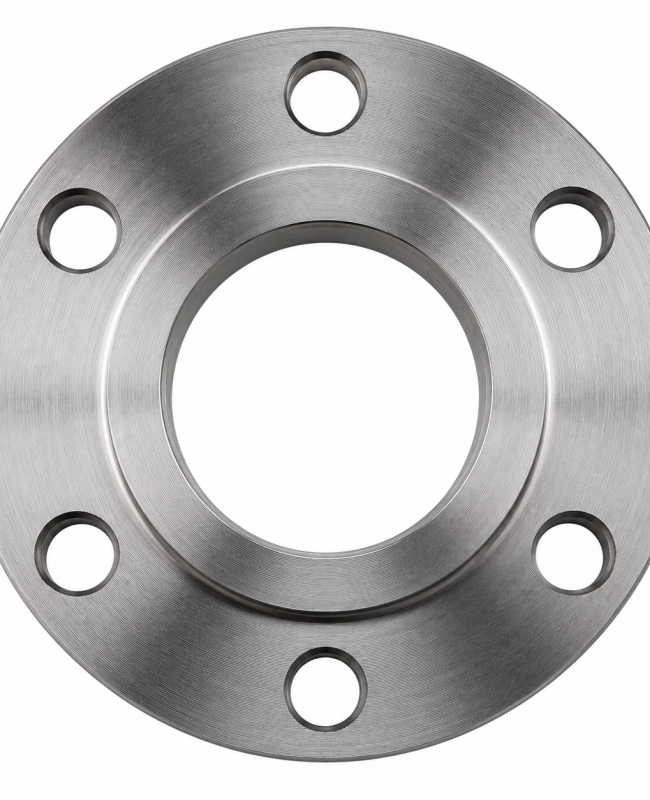

Dimension Details
| Pcd (mm) | Size Nb | No Of Holes | Thickness (mm) | Od Of Flange (mm) | Diam.meter Of Bolt (mm) | Diam.meter Of Bore (mm) |
|---|---|---|---|---|---|---|
| 60.3 | 15NB | 4 | 11.1 | 88.9 | 12.7 | 22.40 |
| 69.9 | 20NB | 4 | 12.7 | 98.4 | 12.7 | 27.70 |
| 79.4 | 25NB | 4 | 14.3 | 108.0 | 12.7 | 34.50 |
| 88.9 | 32NB | 4 | 15.9 | 117.5 | 12.7 | 43.20 |
| 98.4 | 40NB | 4 | 17.5 | 127.0 | 12.7 | 49.50 |
| 120.7 | 50NB | 4 | 19.1 | 152.4 | 15.9 | 62 |
| 139.7 | 65NB | 4 | 22.2 | 177.8 | 15.9 | 74.70 |
| 152.4 | 80NB | 4 | 23.8 | 190.5 | 15.9 | 90.70 |
| 190.5 | 100NB | 8 | 23.8 | 228.6 | 15.9 | 116.10 |
| 215.9 | 125NB | 8 | 23.8 | 254.0 | 19.1 | 143.80 |
| 241.3 | 150NB | 8 | 25.4 | 279.4 | 19.1 | 170.70 |
| 298.5 | 200NB | 8 | 28.6 | 342.9 | 19.1 | 221.50 |
| 362.0 | 250NB | 12 | 30.2 | 406.4 | 22.2 | 276.40 |
| 431.8 | 300NB | 12 | 31.8 | 482.6 | 22.2 | 327.20 |
| 476.3 | 350NB | 12 | 34.9 | 533.4 | 25.4 | 349.20 |
| 539.8 | 400NB | 16 | 36.5 | 596.9 | 25.4 | 410.50 |
| 577.9 | 450NB | 16 | 39.7 | 635.0 | 28.6 | 461.80 |
| 635.0 | 500NB | 20 | 42.9 | 698.5 | 28.6 | 513.10 |
All Dimensions in MM

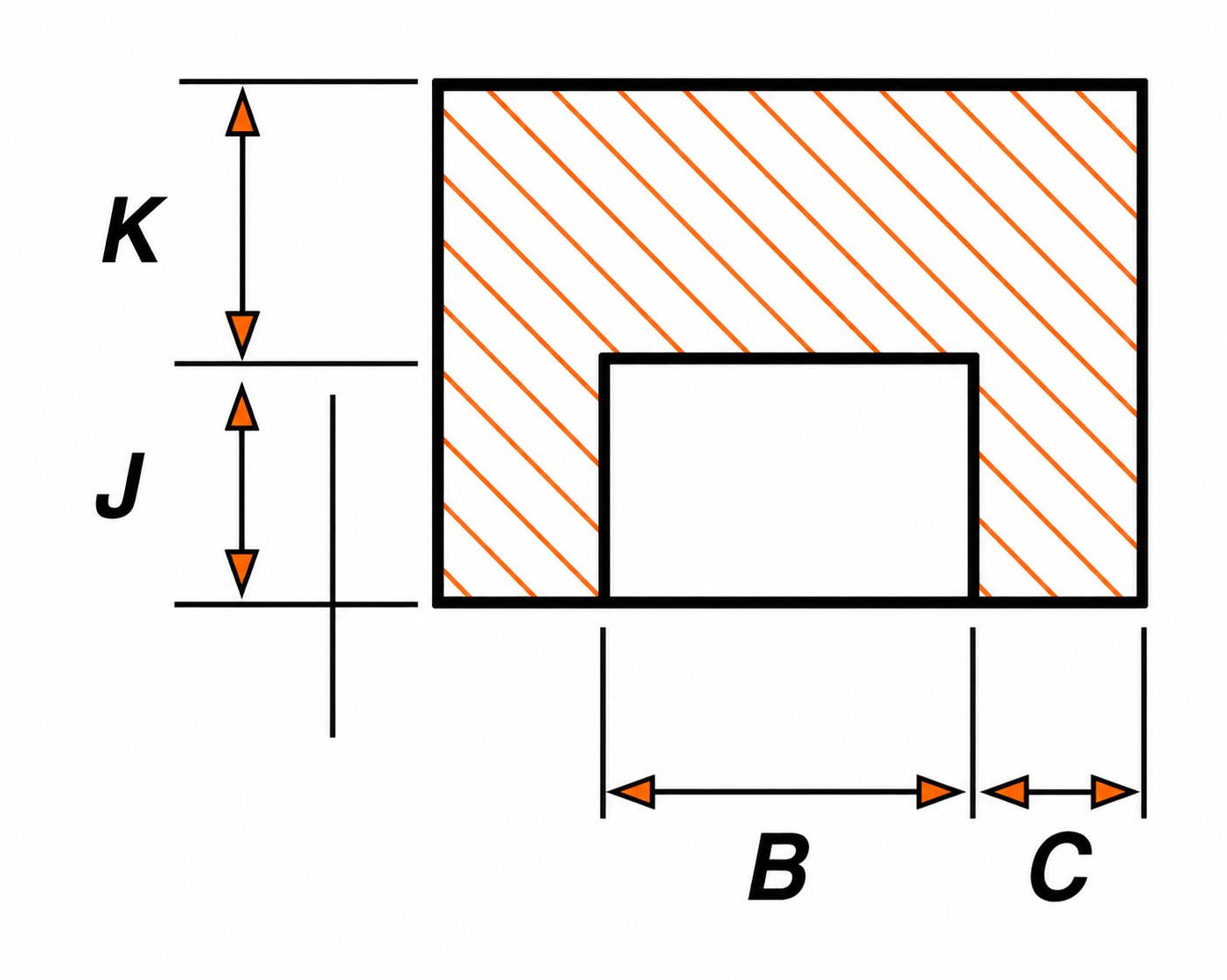

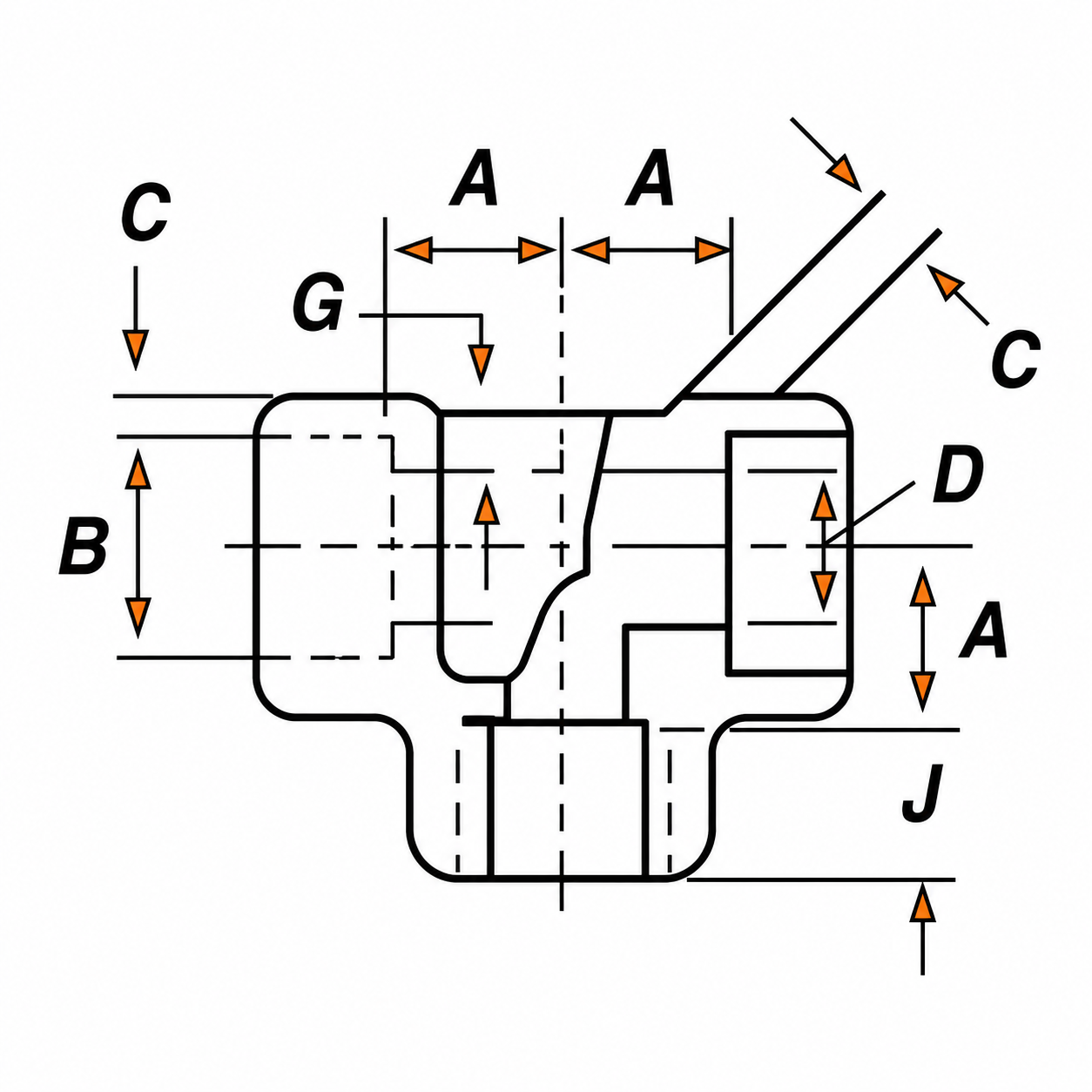

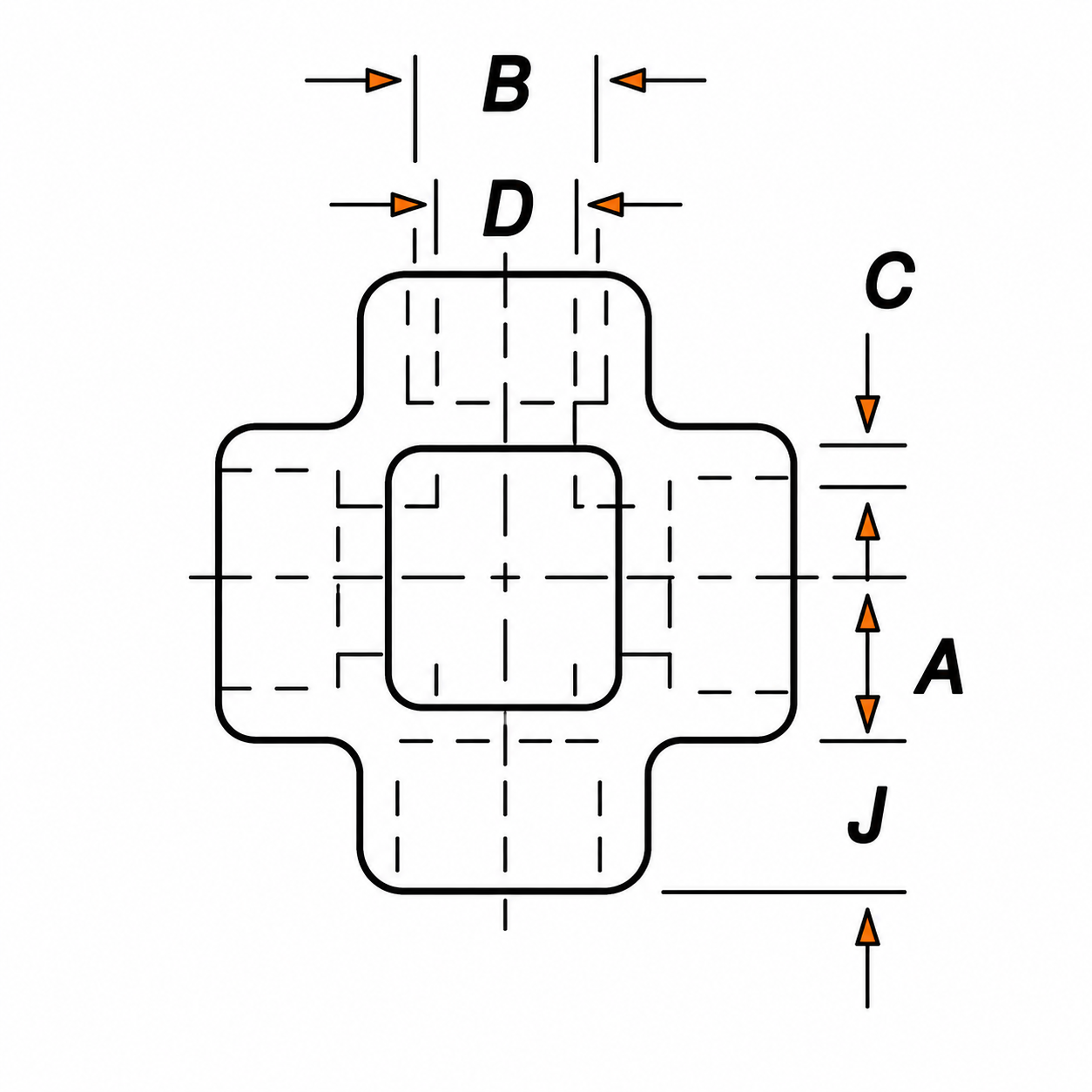

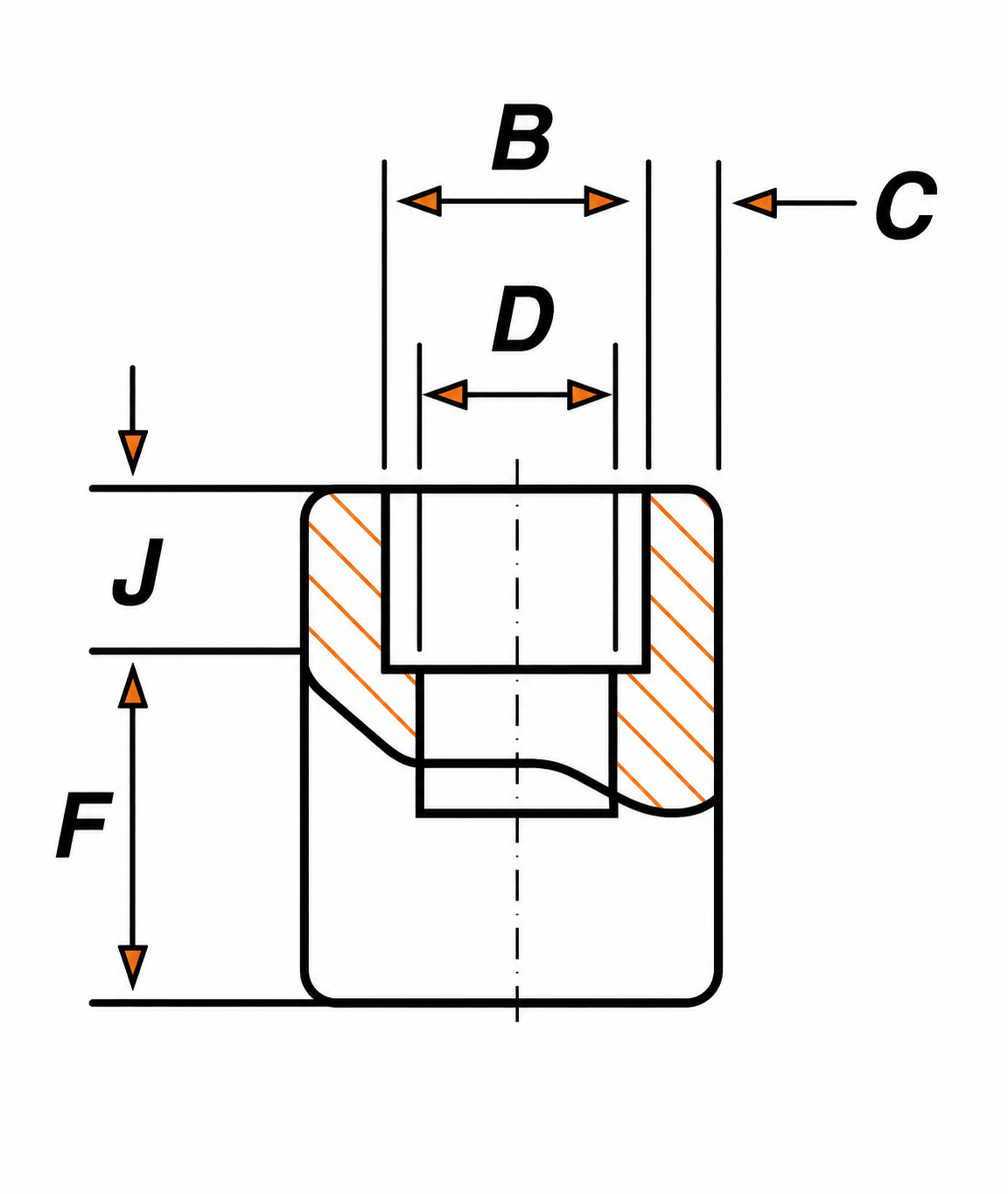

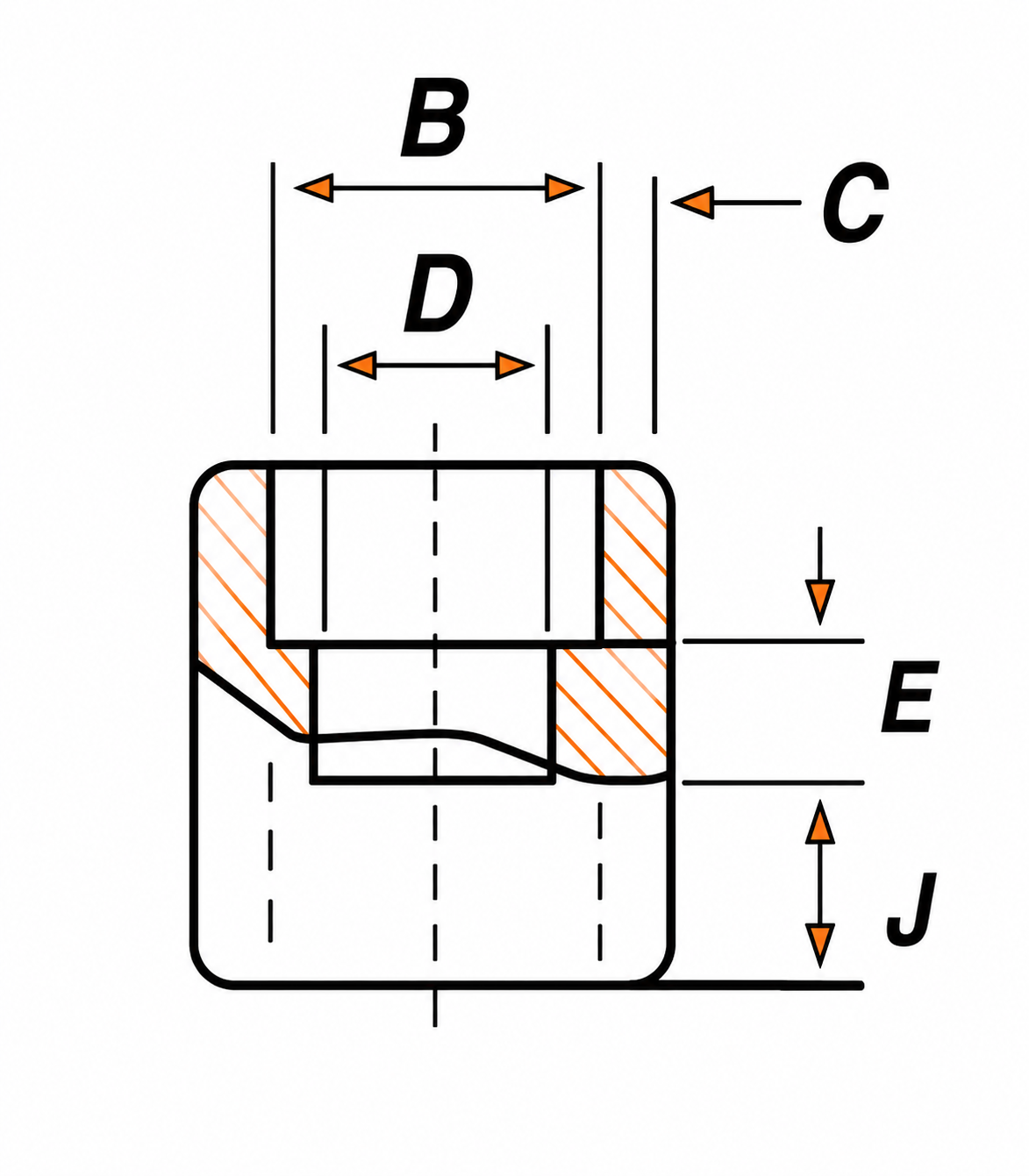

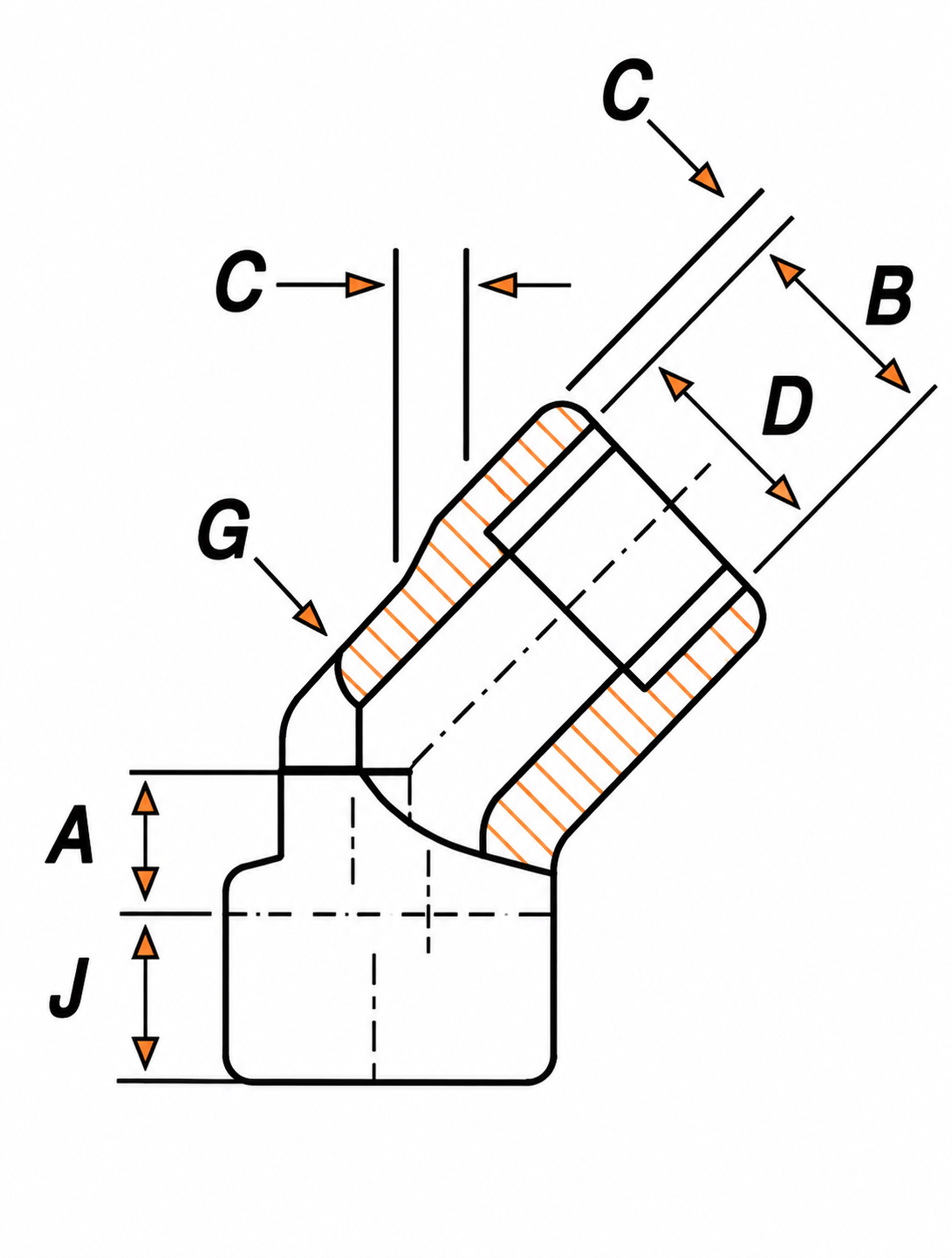

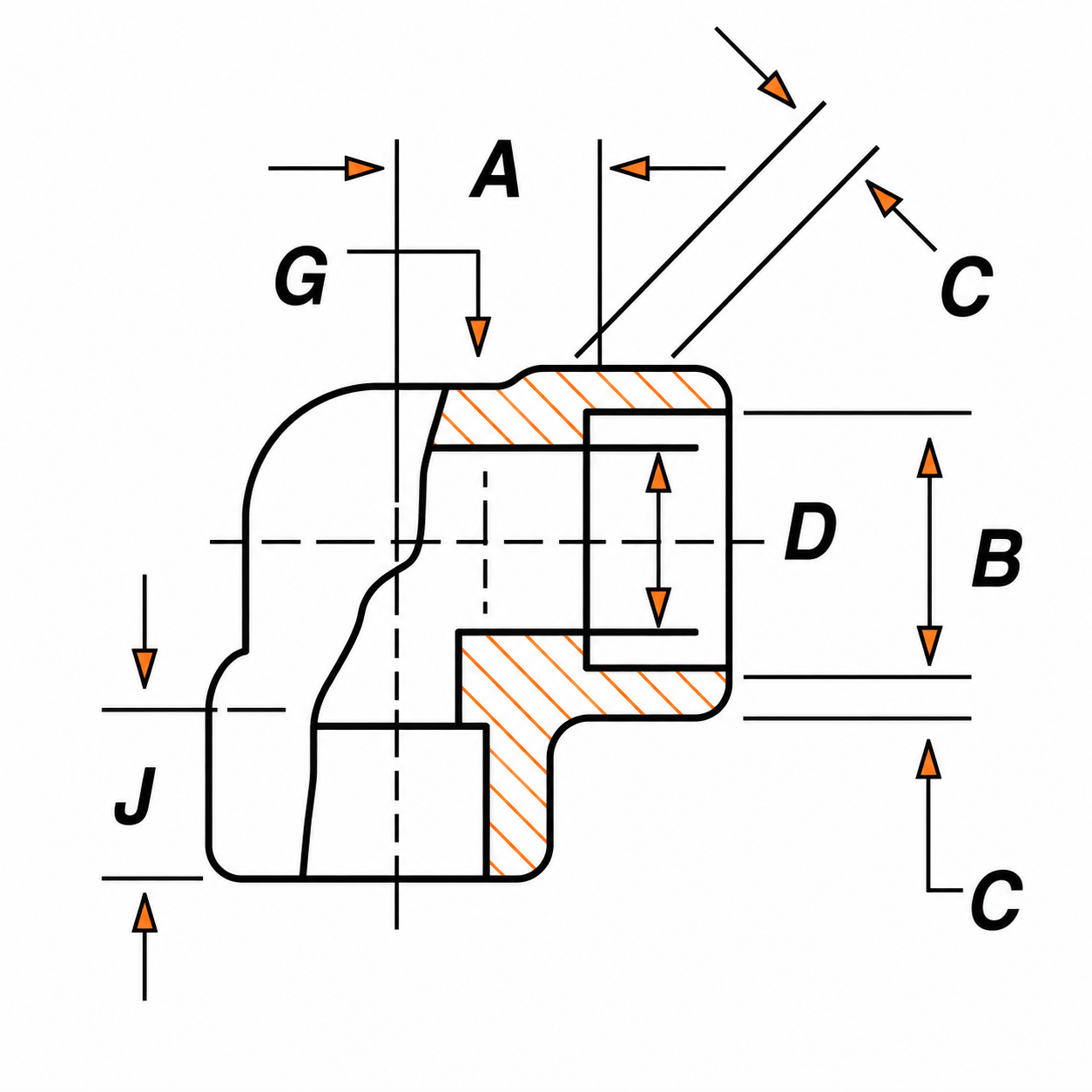

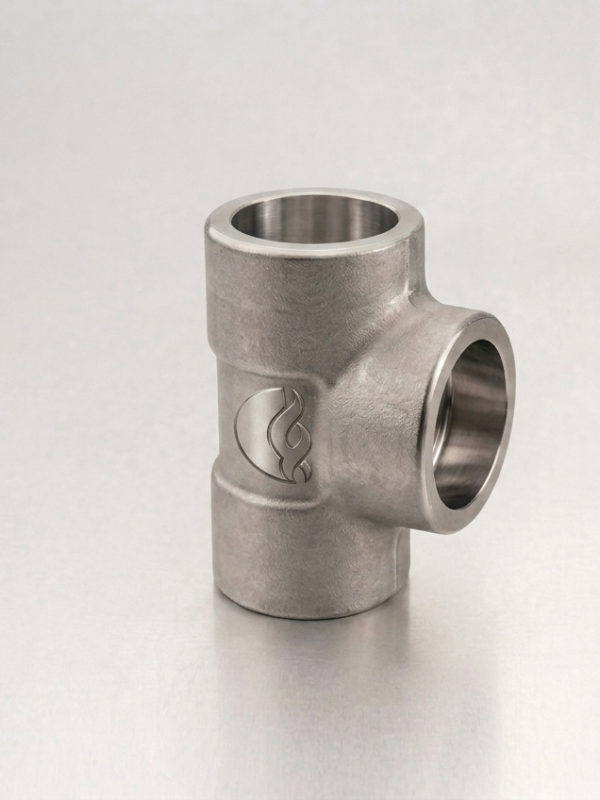

Technical Dimensions
| B | D | C | G | J | A | E | F | A | E | F | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Pipe Size |
Socket Bore dia. B (Note [1]) |
Bore Diameter of Fittings, D [Note (1)] |
Socket Wall Thickness, C | Body Wall | Min Depth of Socket |
Center to Bottom of Socket, A | Laying Lengths |
Tolerances ± | End Wall Thickness Kmin |
||||||||||||||||||||
| Class Designation | Class Designation | Class Designation | 90 deg Elbows, Tees and Crosses |
45 deg Elbows | Class Designation | ||||||||||||||||||||||||
| 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | Class Designation | Coupl- ings, E |
Half Coupl- ings, F |
A | E | F | 3000 | 6000 | 9000 | ||||||||||||
| (mm) | (Inch) | 3000 | 6000 | 9000 | Agv. | Min. | Agv. | Min. | Agv. | Min. | Min. | Min. | Min. | J | 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | |||||||||
| 6 | 1/8 | 11.2 10.8 |
7.6 6.1 |
4.8 3.2 |
..... | 3.18 | 3.18 | 3.96 | 3.43 | ..... | ..... | 2.41 | 3.15 | ..... | 9.5 | 11.0 | 11.0 | ..... | 8.0 | 8.0 | ..... | 6.5 | 16.0 | 1.0 | 1.5 | 1.0 | 4.8 | 6.4 | ..... |
| 8 | 1/4 | 14.6 14.2 |
10.0 8.5 |
7.1 5.6 |
..... | 3.78 | 3.30 | 4.60 | 4.01 | ..... | ..... | 3.02 | 3.68 | ..... | 9.5 | 11.0 | 13.5 | ..... | 8.0 | 8.0 | ..... | 6.5 | 16.0 | 1.0 | 1.5 | 1.0 | 4.8 | 6.4 | ..... |
| 10 | 3/8 | 18.0 17.6 |
13.3 11.8 |
9.9 8.4 |
..... | 4.01 | 3.50 | 5.03 | 4.37 | ..... | ..... | 3.20 | 4.01 | ..... | 9.5 | 13.5 | 15.5 | ..... | 8.0 | 11.0 | ..... | 6.5 | 17.5 | 1.5 | 3.0 | 1.5 | 4.8 | 6.4 | ..... |
| 15 | 1/2 | 22.2 21.8 |
16.6 15.0 |
12.5 11.0 |
7.2 5.6 |
4.67 | 4.09 | 5.97 | 5.18 | 9.35 | 8.18 | 3.73 | 4.78 | 7.47 | 9.5 | 15.5 | 19.0 | 25.5 | 11.0 | 12.5 | 15.5 | 9.5 | 22.5 | 1.5 | 3.0 | 1.5 | 6.4 | 7.9 | 11.2 |
| 20 | 3/4 | 27.6 27.2 |
21.7 20.2 |
16.3 14.8 |
11.8 10.3 |
4.90 | 4.27 | 6.96 | 6.04 | 9.78 | 8.56 | 3.91 | 5.56 | 7.82 | 12.5 | 19.0 | 22.5 | 28.5 | 13.0 | 14.0 | 19.0 | 9.5 | 24.0 | 1.5 | 3.0 | 1.5 | 6.4 | 7.9 | 12.7 |
| 25 | 1 | 34.3 33.9 |
27.4 25.9 |
21.5 19.9 |
16.0 14.4 |
5.69 | 4.89 | 7.92 | 6.93 | 11.38 | 9.96 | 4.55 | 6.35 | 9.09 | 12.5 | 22.5 | 27.0 | 32.0 | 14.0 | 17.5 | 20.5 | 12.5 | 28.5 | 2.0 | 4.0 | 2.0 | 9.6 | 11.2 | 14.7 |
| 32 | 1.1/4 | 43.1 42.7 |
35.8 34.3 |
30.2 28.7 |
23.5 22.0 |
6.07 | 5.28 | 7.92 | 6.93 | 12.14 | 10.96 | 4.85 | 6.35 | 9.70 | 12.5 | 27.0 | 32.0 | 35.0 | 17.5 | 20.5 | 22.5 | 12.5 | 30.0 | 2.0 | 4.0 | 2.0 | 9.6 | 11.2 | 14.2 |
| 40 | 1.1/2 | 49.2 48.8 |
41.6 40.1 |
34.7 33.2 |
28.7 27.2 |
6.35 | 5.54 | 8.92 | 7.80 | 12.70 | 11.12 | 5.08 | 7.14 | 10.15 | 12.5 | 32.0 | 38.0 | 38.0 | 20.5 | 25.5 | 25.5 | 12.5 | 32.0 | 2.0 | 4.0 | 2.0 | 11.2 | 12.7 | 15.7 |
| 50 | 2 | 61.7 61.2 |
53.3 51.7 |
43.6 42.1 |
38.9 37.4 |
6.93 | 6.04 | 10.92 | 9.50 | 13.84 | 12.12 | 5.54 | 8.74 | 11.07 | 16.0 | 38.0 | 41.0 | 54.0 | 25.5 | 28.5 | 28.5 | 19.0 | 41.0 | 2.0 | 4.0 | 2.0 | 12.7 | 15.7 | 19.0 |
| 65 | 2.12 | 74.4 73.9 |
64.2 61.2 |
..... | ..... | 8.76 | 7.67 | ..... | ..... | ..... | ..... | 7.01 | ..... | ..... | 16.0 | 41.0 | ..... | ..... | 28.5 | ..... | ..... | 19.0 | 43.0 | 2.5 | 5.0 | 2.5 | 15.7 | 19.0 | ..... |
| 80 | 3 | 90.3 89.8 |
79.4 76.4 |
..... | ..... | 9.52 | 8.30 | ..... | ..... | ..... | ..... | 7.62 | ..... | ..... | 16.0 | 57.0 | ..... | ..... | 32.0 | ..... | ..... | 19.0 | 44.5 | 2.5 | 5.0 | 2.5 | 19.0 | 22.4 | ..... |
| 100 | 4 | 115.7 115.2 |
103.8 100.7 |
..... | ..... | 10.69 | 9.35 | ..... | ..... | ..... | ..... | 8.56 | ..... | ..... | 19.0 | 66.5 | ..... | ..... | 41.0 | ..... | ..... | 19.0 | 48.0 | 2.5 | 5.0 | 2.5 | 22.4 | 28.4 | ..... |
WHY OUR GEARS MATTER
Precision, High Strength & Reliable Power Transmission
Our Gears are precision manufactured using high-quality engineering materials to deliver smooth power transmission, accurate engagement, and long-lasting performance. Designed for demanding automotive and industrial applications, they provide excellent strength, wear resistance, and dependable operation under heavy loads.
Precision Gear Manufacturing
Accurately machined teeth ensure smooth engagement, precise movement, and efficient power transmission.
High Strength & Durability
Manufactured from premium-quality materials to withstand heavy loads, wear, and demanding operating conditions.
Smooth Power Transmission
Designed for reliable operation with reduced vibration, consistent performance, and extended service life.
Call Us Now
+91 82381 09678
FREQUENTLY ASKED QUESTIONS
Frequently Asked Questions About Our Gears
Find answers to the most common questions about our Gears, including materials, manufacturing quality, applications, customization, and performance.
“Our Gears are engineered for precision, smooth power transmission, superior strength, and dependable long-term performance.”
Our gears can be manufactured from carbon steel, alloy steel, stainless steel, and other suitable engineering materials, depending on the application requirements.
Our gears are suitable for automotive, industrial machinery, transmission systems, manufacturing equipment, and various power transmission applications.
We use precision machining and strict quality control to ensure accurate tooth profiles, dimensional consistency, proper surface finish, and reliable performance.
